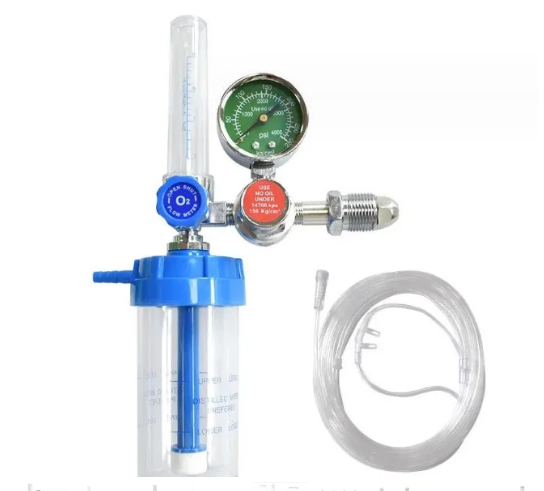

Wholesale Medical Oxygen Regulator & Flowmeter – G5/8 Input, 1-15L/min Flow

Wholesale Medical Oxygen Regulator Reduces tank pressure (15Mpa) and measures flow (1-15L/min). G5/8 inlet, safety valve

Category
Specification：
Input Pressure: 15Mpa (=2200psi). Safely reduces the high pressure from the oxygen tank/cylinder.
Output Pressure: 0.2-0.3Mpa. Ensures a regulated, safe working pressure suitable for human respiratory equipment. |
Safety Valve Discharge: 0.35+0.05Mpa. Automatic discharge pressure mechanism for crucial patient and equipment protection. |
Flow Adjustment Range: 1-15L/min. Precise control for delivering exact oxygen concentrations across adult and pediatric applications. |
The oxygen pressure regulator mechanism is key to patient safety, converting the explosive pressure within the cylinder into a stable, manageable flow suitable for the delicate respiratory system.
Integrated Features
  • Inlet Thread: Standard G5/8 thread (Custom international standards, such as CGA540 or DIN, are available via OEM service).
  • Humidification: Equipped with a humidification bottle device (often a bubbler), which is crucial for passing the medical oxygen through water to prevent the drying out of the patient’s mucosal membranes during extended therapy.
For bulk procurement officers and medical equipment distributors, we guarantee high quality, compliance and flexible supply:
Packaging box (19cm x 16cm x 10cm) ensures product protection during shipping and storage.
Customization is available. We specialize in OEM service for the Oxygen Regulator and Gas Regulator, adapting thread standards, gauge design, flow range, and logo printing according to specific customer requirements.
By choosing us as your wholesale medical gas regulator supplier, you secure a partner dedicated to delivering precision, certified safety and consistent supply for all your respiratory equipment needs.

FAQ:

Safety&Certification

Q: What safety certifications has this pressure regulator passed?

A: This product is manufactured strictly in accordance with relevant standards and has passed ISO medical/European pressure equipment directive/US national cylinder valve standard certification. All products undergo strict air tightness and pressure testing before leaving the factory.

Q: Is it suitable for medical oxygen?

A: Yes, it is. Our is a medical grade pressure reducer designed specifically for medical oxygen. The key difference lies in material compatibility (ensuring oil-free and antioxidant properties) and cleanliness requirements (preventing contamination)

Q: What is the maximum input/output pressure? What is the popping pressure of the safety valve?

A: The maximum inlet pressure of this pressure reducer is [e.g. 200 Bar/3000 PSI], and the adjustable outlet pressure range is [e.g. 0.5 to 7 Bar/5 to 100 PSI]. The built-in safety valve will automatically release pressure when the outlet pressure exceeds [e.g. 8.5 Bar/125 PSI], preventing damage to downstream equipment.
