Product Detail

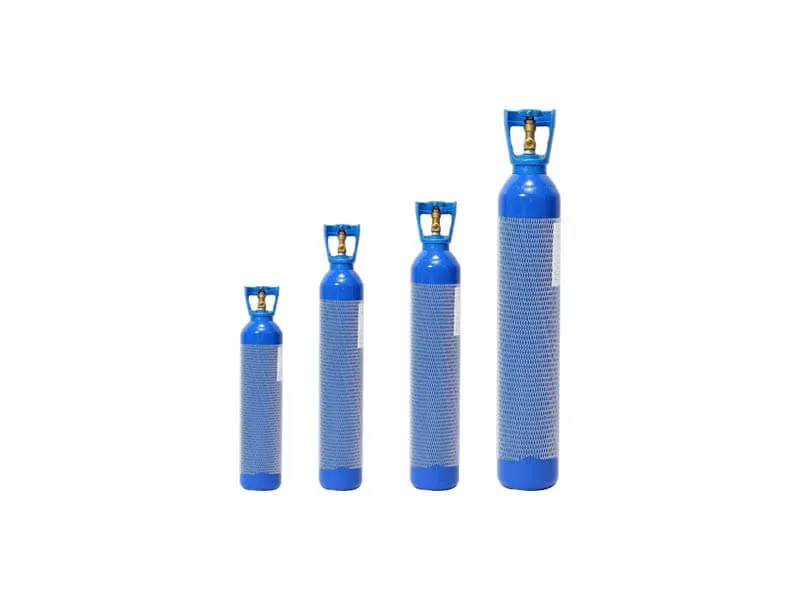

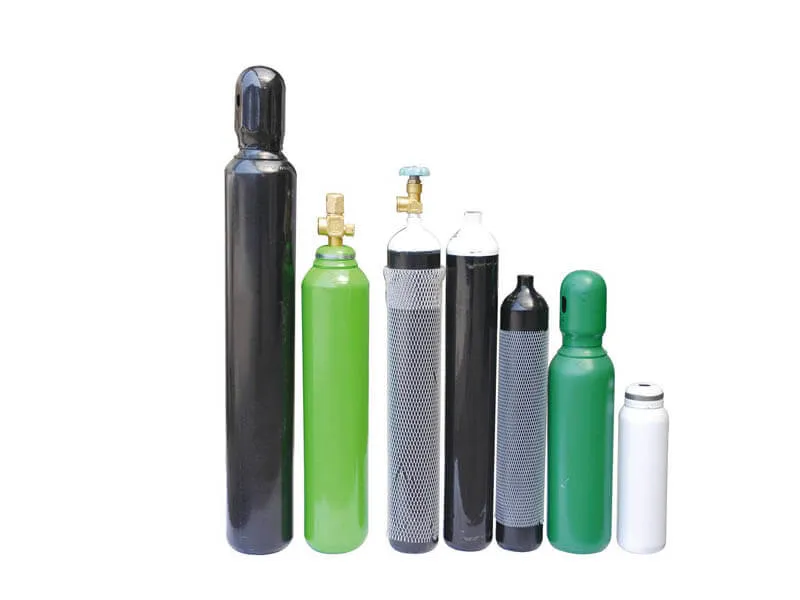

AmcareMed medical gas cylinders use first-class processing equipment and advanced processes to produce high-pressure steel seamless gas cylinders of various specifications, including 5 liter, 10 liter, 15 liter, 40 liter, and 50 liter gas cylinders. In addition to the commonly used oxygen cylinders, we can also produce argon, nitrogen, neon, air, carbon monoxide, carbon dioxide and other gas cylinders.
Specifications
- Working Pressure:150bar/200bar; Testing pressure: 250bar
- Filling Medium: Air, Oxygen, Argon, Hydrogen, Helium, Nitrogen, Carbon dioxide
- Equipped with various specifications of caps or valves(BS341, DIN477and CGA standard)
- Manufacturing material: 37Mn/34CrMo4
- Cylinder body and label colors available ISO or USA
- Service life: 30 years
Model
ISO9809-3
Model | Outside diameter(mm) | Water capacity (L) |
Height(without valve) (mm) |
Weight(without valve/cap) (kg) |
Working pressure(Bar) | Water test pressure(Bar) | Design wall thickness(mm) |
CY140-4-15 | 140 | 4 | 375 | 5.89 | 150 | 250 | 3.8 |
CY140-5-15 | 5 | 447 | 6.96 | ||||
CY140-6-15 | 6 | 516 | 7.56 | ||||
CY140-7-15 | 7 | 591 | 8.63 | ||||
CY140-8-15 | 8 | 665 | 9.68 | ||||
CY140-9-15 | 9 | 744 | 10.7 | ||||
CY140-10-15 | 10 | 818 | 11.9 | ||||
CY140-12-15 | 12 | 966 | 14.3 | ||||
CY140-14-15 | 14 | 1112 | 16.4 | ||||
CY140-15-15 | 15 | 1188 | 17.5 | ||||
CY159-8-15 | 159 | 8 | 548 | 9.11 | 150 | 250 | 4.3 |
CY159-10-15 | 10 | 660 | 10.9 | ||||
CY159-12-15 | 12 | 780 | 13.1 | ||||
CY159-13.4-15 | 13.4 | 861 | 15.4 | ||||
CY159-15-15 | 15 | 932 | 16.8 | ||||
CY180-8-15 | 180 | 8 | 467 | 13.5 | 150 | 250 | 4.9 |
CY180-10-15 | 10 | 571 | 15.4 | ||||
CY180-15-15 | 15 | 792 | 20.2 | ||||
CY180-18-15 | 18 | 924 | 23.1 | ||||
CY180-20-15 | 20 | 1012 | 24.8 | ||||
CY219-20-15 | 219 | 20 | 715 | 28 | 150 | 250 | 5.7 |
CY219-25-15 | 25 | 865 | 33 | ||||
CY219-32-15 | 32 | 1075 | 40 | ||||
CY219-36-15 | 36 | 1195 | 44 | ||||
CY219-40-15 | 40 | 1315 | 48 | ||||
CY219-42-15 | 42 | 1375 | 50 | ||||
CY219-45-15 | 45 | 1465 | 54 | ||||
CY219-50-15 | 50 | 1615 | 60 |
ISO9809-1
Model | Outside diameter(mm) | Water capacity (L) |
Height(without valve) (mm) |
Weight(without valve/cap) (kg) |
Working pressure(Bar) | Water test pressure(Bar) | Design wall thickness(mm) |
CY140-4-20 | 140 | 4 | 364 | 5.77 | 200 | 300 | 3.4 |
CY140-5-20 | 5 | 443 | 6.76 | ||||
CY140-6-20 | 6 | 516 | 7.56 | ||||
CY140-7-20 | 7 | 591 | 8.63 | ||||
CY140-8-20 | 8 | 665 | 9.68 | ||||
CY140-9-20 | 9 | 748 | 12 | ||||
CY140-10-20 | 10 | 818 | 11.9 | ||||
CY140-12-20 | 12 | 985 | 15.9 | ||||
CY140-14-20 | 14 | 1123 | 17.7 | ||||
CY140-15-20 | 15 | 1180 | 18.9 | ||||
CY152-6-20 | 152 | 6 | 455 | 8.6 | 200 | 300 | 3.7 |
CY152-8-20 | 8 | 588 | 10.8 | ||||
CY152-10-20 | 10 | 714.5 | 13.4 | ||||
CY152-15-20 | 15 | 1017 | 17.8 | ||||
CY159-8-20 | 159 | 8 | 548 | 9.11 | 200 | 300 | 3.9 |
CY159-10-20 | 10 | 660 | 10.9 | ||||
CY159-12-20 | 12 | 792 | 13.1 | ||||
CY159-13.4-20 | 13.4 | 861 | 15.4 | ||||
CY159-15-20 | 15 | 932 | 16.8 | ||||
CY180-8-20 | 180 | 8 | 461 | 13.2 | 200 | 300 | 4.4 |
CY180-10-20 | 10 | 571 | 15.4 | ||||
CY180-15-20 | 15 | 792 | 20.2 | ||||
CY180-18-20 | 18 | 930 | 24.9 | ||||
CY180-20-20 | 20 | 1012 | 24.9 | ||||
CY232-38-15 | 232 | 38 | 1130 | 44 | 150 | 250 | 5.4 |
CY232-40-15 | 40 | 1180 | 46 | ||||
CY232-45-15 | 45 | 1320 | 50 | ||||
CY232-46-15 | 46 | 1345 | 51 | ||||
CY232-46.7-15 | 46.7 | 1360 | 52 | ||||
CY232-47-15 | 47 | 1370 | 52 | ||||
CY232-50-15 | 50 | 1445 | 55 | ||||
CY232-52-15 | 52 | 1505 | 57 | ||||
CY232-25-20 | 232 | 25 | 751 | 31.3 | 200 | 300 | 5.8 |
CY232-30-20 | 30 | 892 | 35.8 | ||||
CY232-38-20 | 38 | 1125 | 44.5 | ||||
CY232-40-20 | 40 | 1180 | 46.5 | ||||
CY232-45-20 | 45 | 1310 | 51.2 | ||||
CY232-46-20 | 46 | 1340 | 52.3 | ||||
CY232-46.7-20 | 46.7 | 1360 | 53 | ||||
CY232-47-20 | 47 | 1370 | 53.3 | ||||
CY232-50-20 | 50 | 1450 | 56.3 | ||||
CY232-52-20 | 52 | 1500 | 58 |
