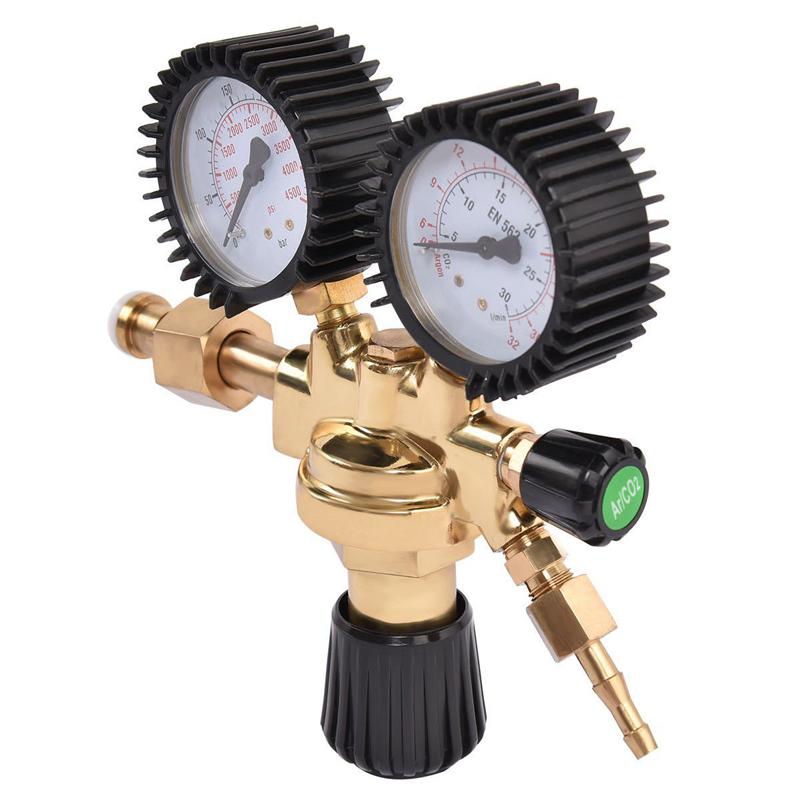

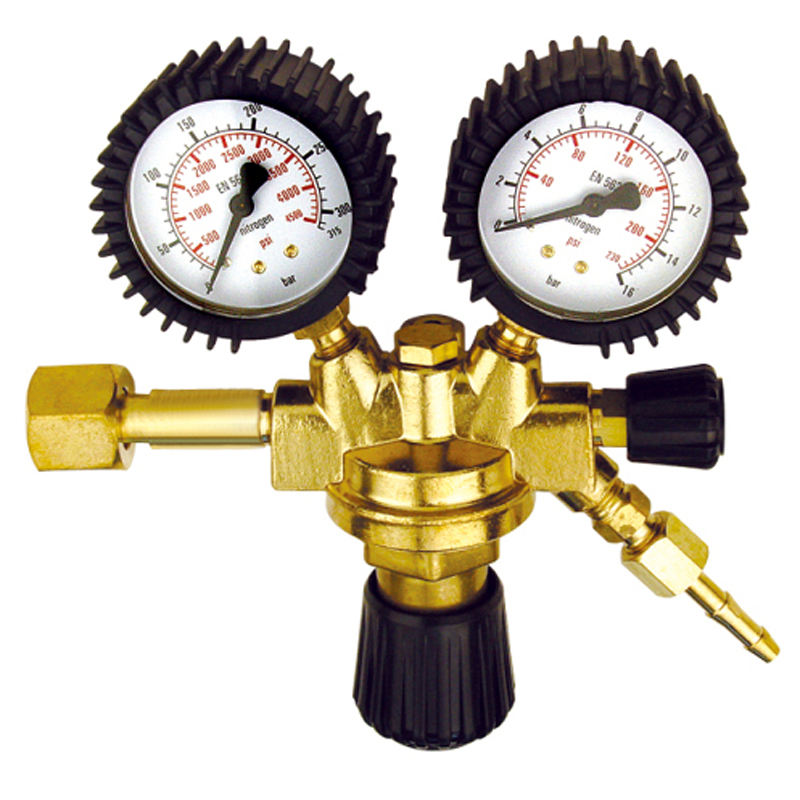

The argon and carbon dioxide pressure reducing valve is a high-quality single-stage regulator equipped with two regulators for welding with gas cylinders. There is an easy to read pressure gauge – the maximum inlet and outlet pressure of the regulator is indicated by a red line on the pressure gauge. The body of the instrument is made of high-quality brass, and the flammable gas connection nut is a left-hand thread with markings. It is very suitable for gas cylinders used for compressing and dissolving gases, as well as liquid gas cylinders, by adjusting the simple variable inlet pressure to the most constant output pressure.
Maximum inlet pressure: 200 bar
Maximum outlet pressure: 10 bar
Input thread: Width 21.8 x 1/14 inch
Export thread (hose): 8.0mm
Weight: 1.1 kilograms
| No. | Gas | Max Inlet Pressure(bar) | Working Pressure(bar) | Inlet Connection | Outlet Connection |
| 1. | Oxygen | 250 | 3.0-10.0 | G5/8” | G1/4” |
| 2. | Acetylene | 30 | 0.1-1.0 | Frame | G1/4”-LH |
| 3. | CO2 | 250 | 3.0-10.0 | W21.8-14″ | G1/4” |
| 4. | Nitrogen | 250 | 3.0-10.0 | G5/8” | G1/4” |
| 5. | Propane | 30 | 0.1-2.5 | W21.8-14″ | G1/4”-LH |
