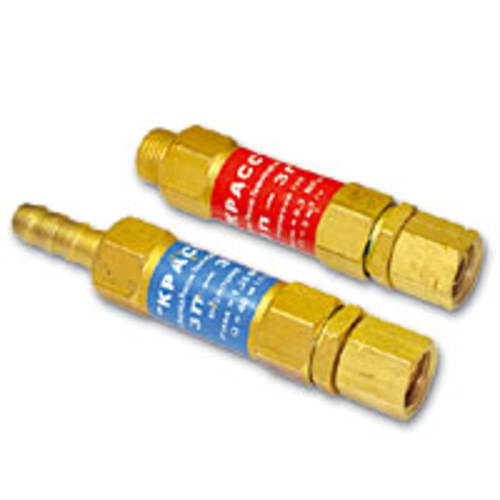

Safety valve ZP-3G-211 (flammable gas)

$0.01

The ZP-3G-211 safety shutter is designed to prevent the backlash (flame) that occurs during gas-flame processing of metals from passing into the protected equipment (cylinder); Inlet diameter M16x1.5LH, outlet diameter M16x1.5LH; Maximum throughput 5 m3/h; Working pressure 0.3 MPa; Overall dimensions no more than Ф24.5×125 mm; Weight no more than 0.18 kg.

SKU: b419ead0c6b8 Category: Tags: ,

The ZP-3G-211 safety shutter is designed to prevent the backlash (flame) that occurs during gas-flame processing of metals from passing into the protected equipment (cylinder); Inlet diameter M16x1.5LH, outlet diameter M16x1.5LH; Maximum throughput 5 m3/h; Working pressure 0.3 MPa; Overall dimensions no more than Ф24.5×125 mm; Weight no more than 0.18 kg.

Weight 1 kg
Dimensions 11 × 1 × 1 cm
