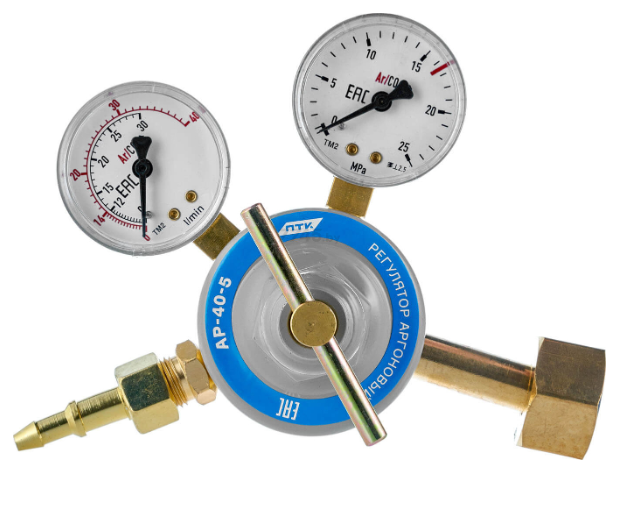

Reducer Argon PTK AR-40-5

Argon reducer PTK AR-40-5 is designed to reduce and regulate the pressure of the gas (argon) coming from the cylinder and to automatically maintain a constant operating flow at the output of the regulator during work. The nipple F 6/9 mm is supplied with the gearbox.

Category

Reducer Argon PTK AR-40-5
Type:Argon
Maximum throughput 2.4 m3*h
Maximum gas pressure at the inlet :20 MPa
Maximum gas working pressure :1 MPa
Operating pressure irregularity coefficient i (not more than) 0.3
Operating pressure drop factor R (not more than) 0.3
Connection size Input :G 3/4 (internal)
Connection size OUTPUT: M16×1.5 (external)
Gross weight :0.85 kg
