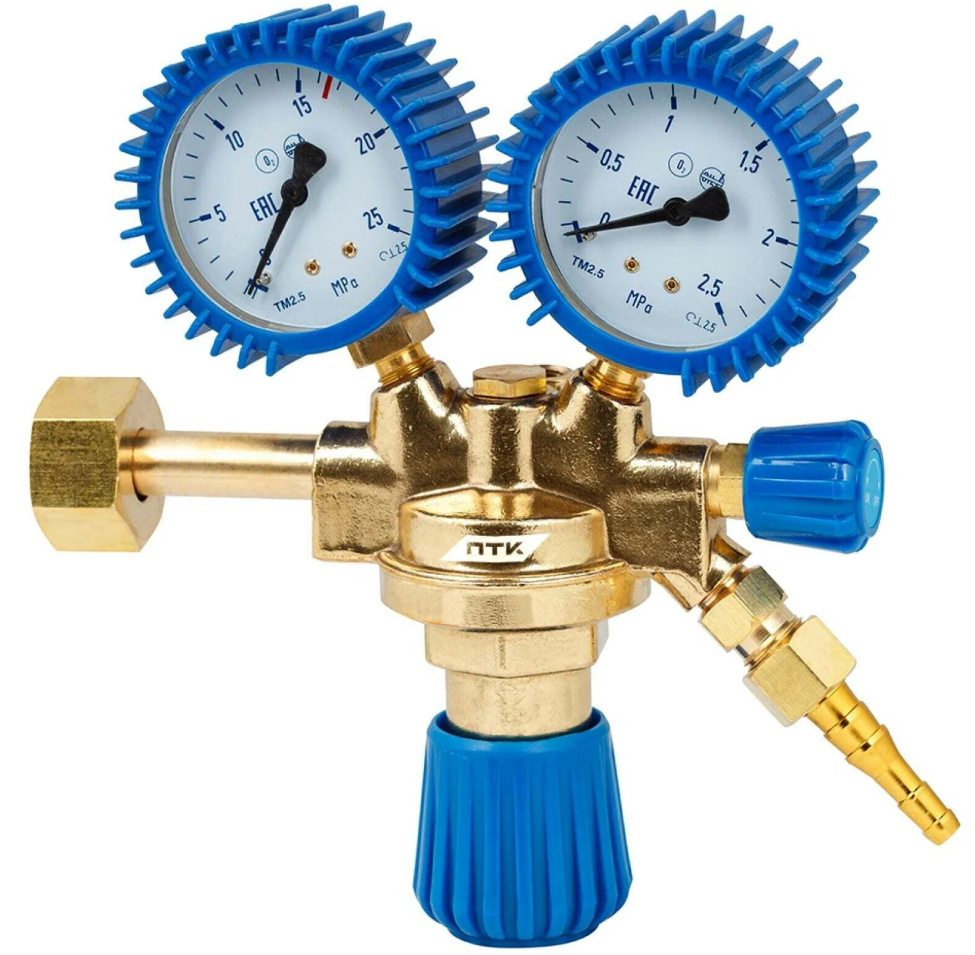

The oxygen reducer BKO-50-KR-I is designed to reduce the pressure of the gas coming from the cylinder and automatically maintain a constant set working pressure during gas flame treatment. Produces fine adjustment of working pressure. The work of the safety valve occurs at a pressure of 1.6 MPa.
Reducer with cast brass body. Ergonomic setting screws are installed on the gearbox. The pressure gauges are additionally protected by rubber casings that protect the device from mechanical damage.
The reducer is used in intensive operation, also when operating outdoors in the winter period of time.
Features:
The reducer is equipped with a universal nipple, which allows the use of rubber sleeves with an inner diameter of 6 and 9 mm without additional adapters.
The reducer is packed in an individual cardboard box, which eliminates the fight of pressure gauges and ensures the safety of the assembly during transport and storage in the warehouse.
Technical Specifications
Reducing gas: Oxygen Maximum throughput, m³/h:50 Maximum inlet gas pressure, MPa (kg/cm²):20 (200)Maximum operating gas pressure, MPa (kg/cm²):1.25 (12.5)Pressure of the safety valve, MPa (kg/cm²):1.6 (16.0) Connection to the cylinder: Radial Connection dimensions at the entrance – nuts with internal thread: G3/4-BConnection dimensions at the exit – plug with nut (thread) and nipple (ø mm): M16x1,5 and nipple 6/9Net weight, kg:1,26 Reducer dimensions as assembled, mm:197х185х65 Gross weight, kg:1,3 Individual package dimensions, mm:200х195х60
Type:reducer
Gas Type: Oxygen
Maximum throughput: 50 m³/h
Features：pressure gauge, safety valve
