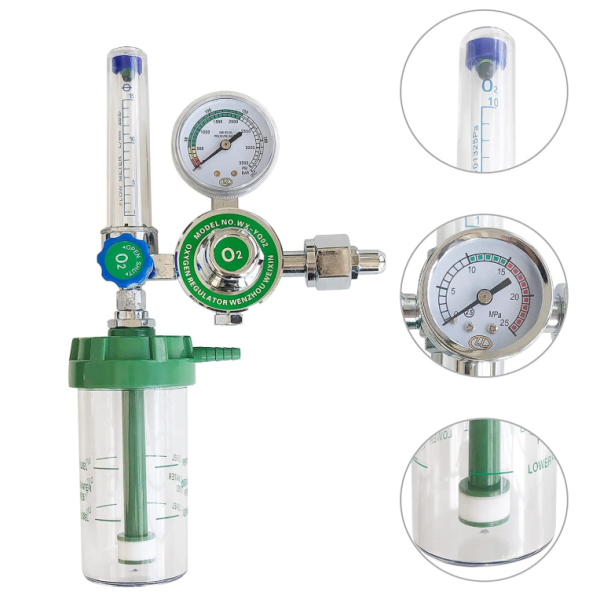

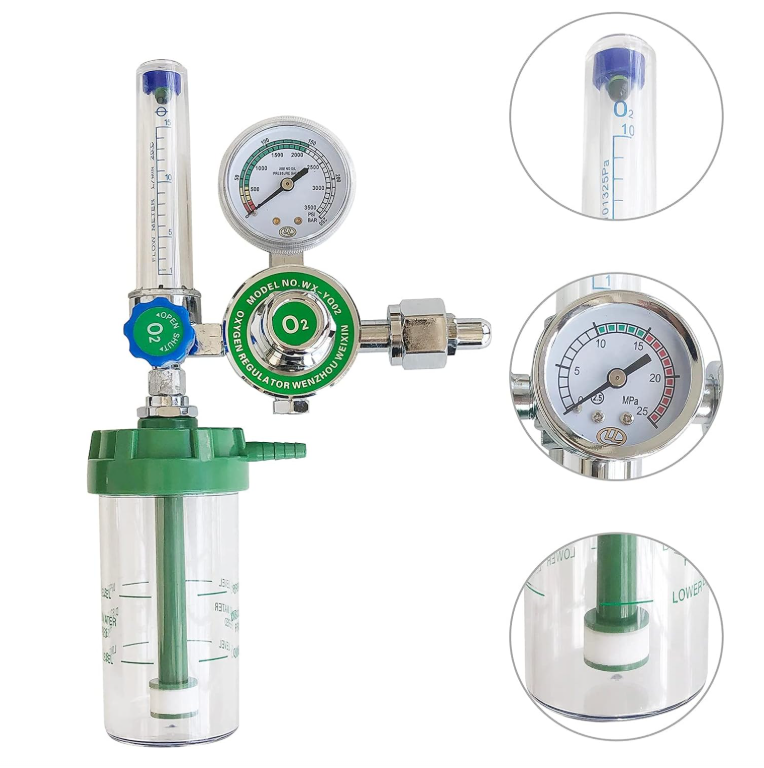

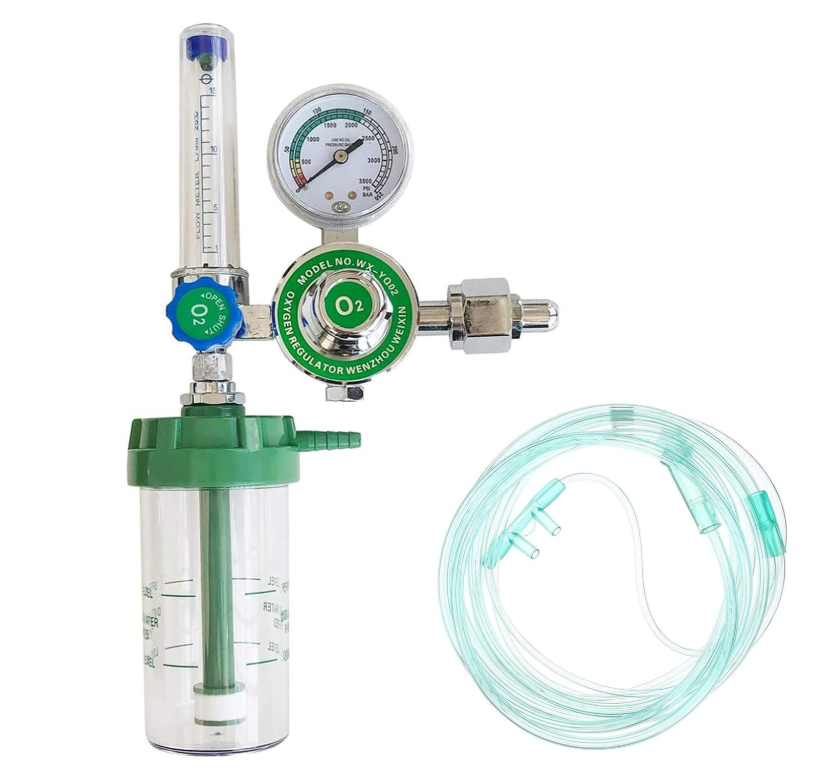

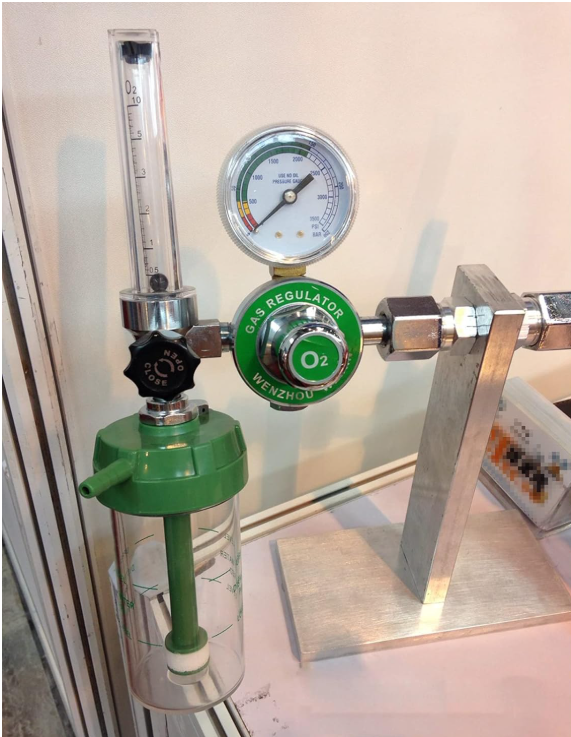

Oxygen pressure, gas regulator, inhaler, O2 pressure reducer, oxygen meter, flow meter, float type, internal thread and pipe

It is mainly used in oxygen supply systems and is used for emergency oxygen and oxygen inhalation; It can also be used in research institutions, industry, mining, and other inhalation flow control equipment.
Pressure reducing valve: The theme of brass pressure reducing valve is high toughness, wear resistance, corrosion resistance, and better sealing safety.
Fine pressure gauge: The pressure gauge is made of high-quality glass, with a thick and anti drop design, clear and highly sensitive
Gas filter: dual protection, more energy-efficient, more economical, and safer to use; Precision machining ensures the machining accuracy of each part

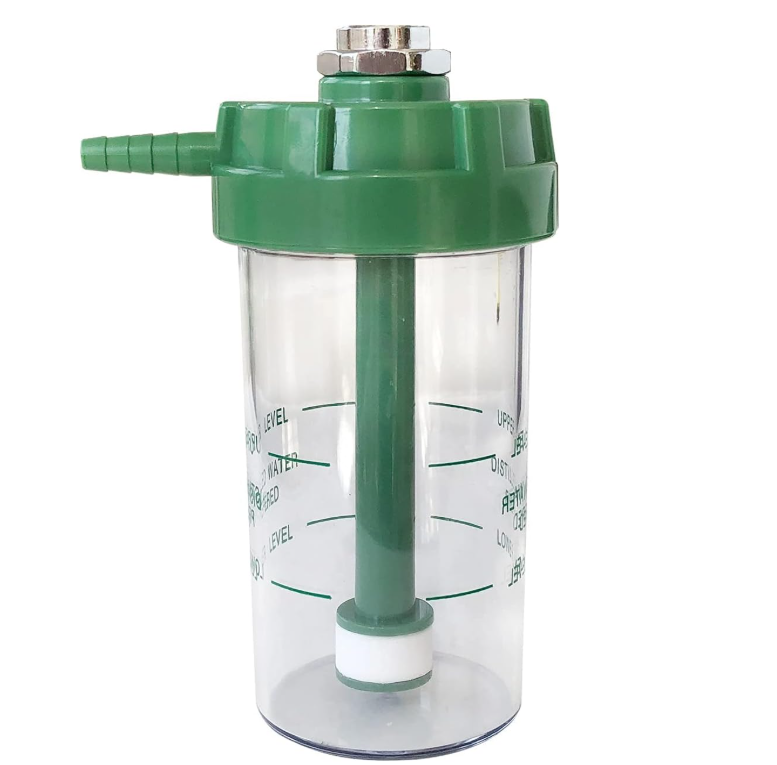

Thermos bottle: removable and washable, more hygienic. Built in filter can prevent impurities from entering

Category
Specification:
  • Product name: Buoy type oxygen inhaler
  • Input pressure: <15Mpa
  • Output pressure: 0.25Mpa
  • Flow adjustment range: 1-10L/min
  • Safety valve: 0.5Mpa automatic exhaust
  • Imported thread: G5/8”
  • Export thread: M12x1
  • With humidification bottle device.
Instruction:

Oxygen Inhalator is mainly used in the oxygen supply system

1、Mainly component name(Pleasesee overleaf)

2、Mainly function:

2-1.Oxygen flow range:1~10L/Min 1~15L/Min

2-2.Pressure reducing range:2.0~3.0kg

2-3.Relief valve Pressure range:(3.5kg±0.5kg)

3、Appliance introduction:

3-1.Before using, please fill pour clear water into moisture bottle about one third

reaching water line site.

3-2.DF-2 blind nut straw into bolt head, make the pipe of flow meter square water line.

3-3.Put off regulator(9),put on oxygen tube switch, so you will the data from needle position of pressure gauge(2).At last, straw flow on/off at anti clockwise according to need, adjust switch.

3-4.If you need oxygen for a long time,can use the pipe to help absorb oxygen.

3-5.Moisture bottle(20) circles at clockwise,adjust(17) oxygen hole to other site.

Working principle：
  • This product is to provide a constant pressure and flow. The oxygen inhaler uses its own decompression device to reduce the high pressure(the pressure when the bottle is filled is 15Mpa) to the low pressure suitable(0.2~0.2Mpa), and then output to the wetted water. Since the input pressure of the wall-mounted oxygen inhaler is 0.2~0.4Mpa, it can be directly output without decompression.
  • Method of operation：
  • 1. Add distilled water to the humidification cup. The water level in the bottle cannot be higher than the upper water line, but not lower than the lower water line.
  • 2. Before inserting the inhaler into the oxygen supply terminal socket, please turn off the flow adjustment switch and adjust the direction of the oxygen quick plug, and then insert the quick plug into the oxygen supply terminal socket. When you hear a “click” sound and see the oxygen supply terminal, when the locking sleeve of the socket slides automatically, it means that the quick plug and the oxygen supply terminal socket are connected and locked.
  • 3. Before supplying oxygen, insert the oxygen suction pipe into the oxygen supply connector, and then turn the flow adjustment switch counterclockwise to open the origin, so that the float rises slowly (the scale line aligned with the center of the float is the flow reading, and the unit is liters/ Minutes),the oxygen supply can be adjusted according to needs.
FAQ:

Q: What safety certifications has this pressure regulator passed?

A: This product is manufactured strictly in accordance with relevant standards and has passed ISO medical/European pressure equipment directive/US national cylinder valve standard certification. All products undergo strict air tightness and pressure testing before leaving the factory.

Q: Is it suitable for medical oxygen?

A: Yes, it is. Our is a medical grade pressure reducer designed specifically for medical oxygen. The key difference lies in material compatibility (ensuring oil-free and antioxidant properties) and cleanliness requirements (preventing contamination)

Q: What is the maximum input/output pressure? What is the popping pressure of the safety valve?

A: The maximum inlet pressure of this pressure reducer is [e.g. 200 Bar/3000 PSI], and the adjustable outlet pressure range is [e.g. 0.5 to 7 Bar/5 to 100 PSI]. The built-in safety valve will automatically release pressure when the outlet pressure exceeds [e.g. 8.5 Bar/125 PSI], preventing damage to downstream equipment.
