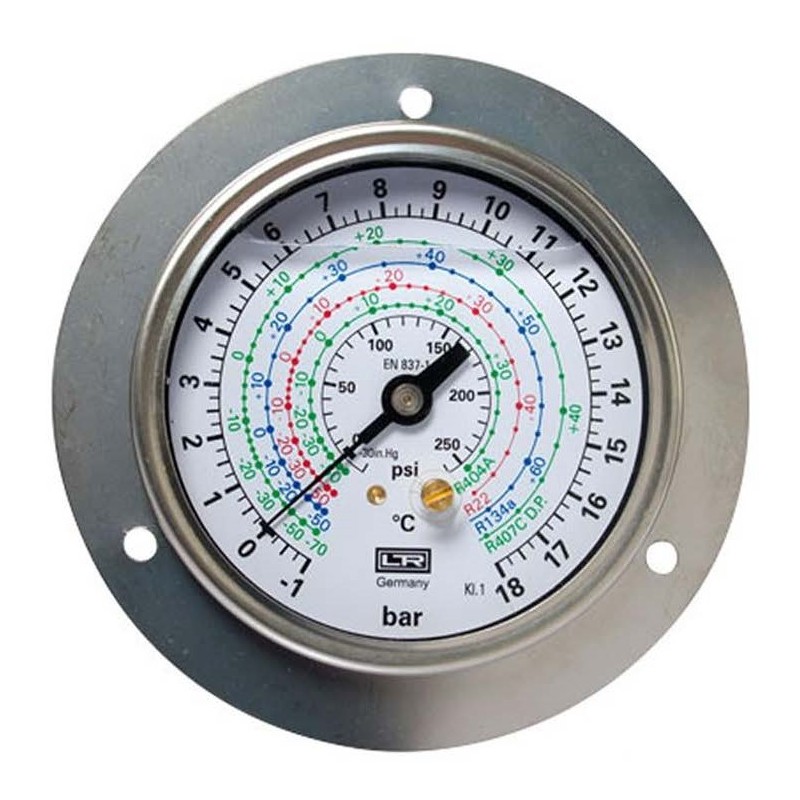

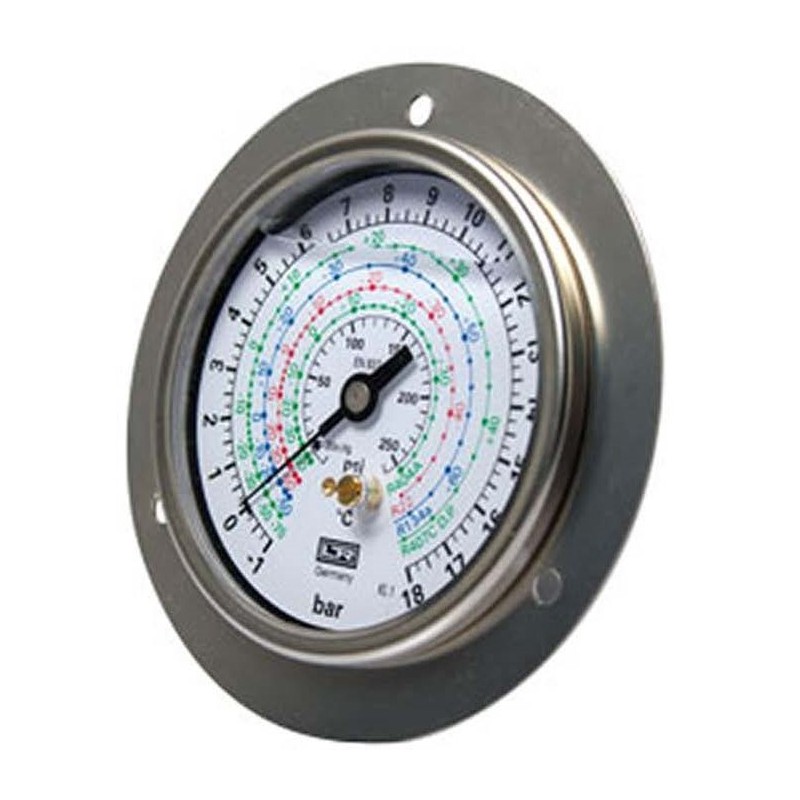

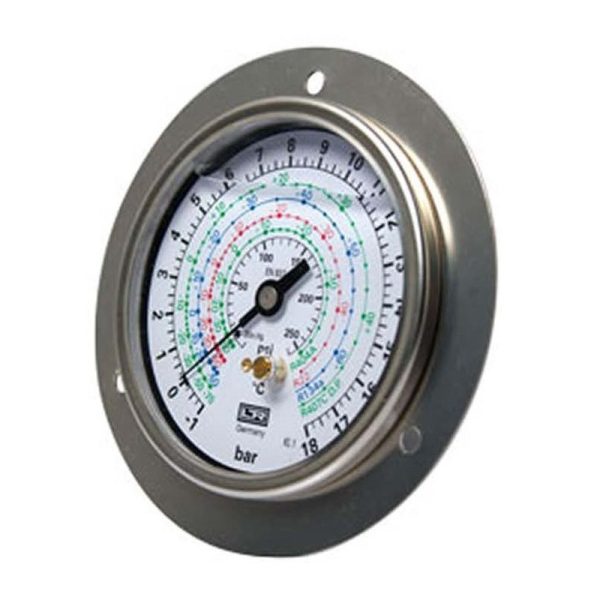

HVAC Pressure Gauge type MFG with Flange

The Stainless Steel Leitenberger HVAC Pressure Gauge type MFG with Flange is available with either a 63, 80 or 100 diameter

Category

HVAC Pressure Gauge type MFG with flange Features

  • Range High: -1/+38 bar 14,50/500 psi
  • Range Low: -1/+18 bar 14,50/260 psi
  • Case Material: AISI 304 stainless steel
  • Window: plexiglass
  • Socket: 1/4 SAE or 1/8 NPT, bottom, OT 58 brass
  • Elastic element: phosphor bronze
  • Movement: gearing, OT 59 brass
  • Dial: white
  • Pointer: black oxidized aluminium
  • Accuracy: cl. 1,6
  • Ambient-T: +15 / +65°C / +59/149 °F
  • Process fluid-T: max. +65°C / +149 °F
  • Process pressure: max. 75% of full scale value
  • Over pressure: 25% of full scale value
  • Protection: IP65 according IEC29
  • Over pressure: 25% of full scale value

HVAC Pressure Gauge type MF Options

  • Diameter: 63, 80 or 100
  • Connection Size and Location: ¼” SAE, 1⁄8” NPT, Location Bottom or Back
