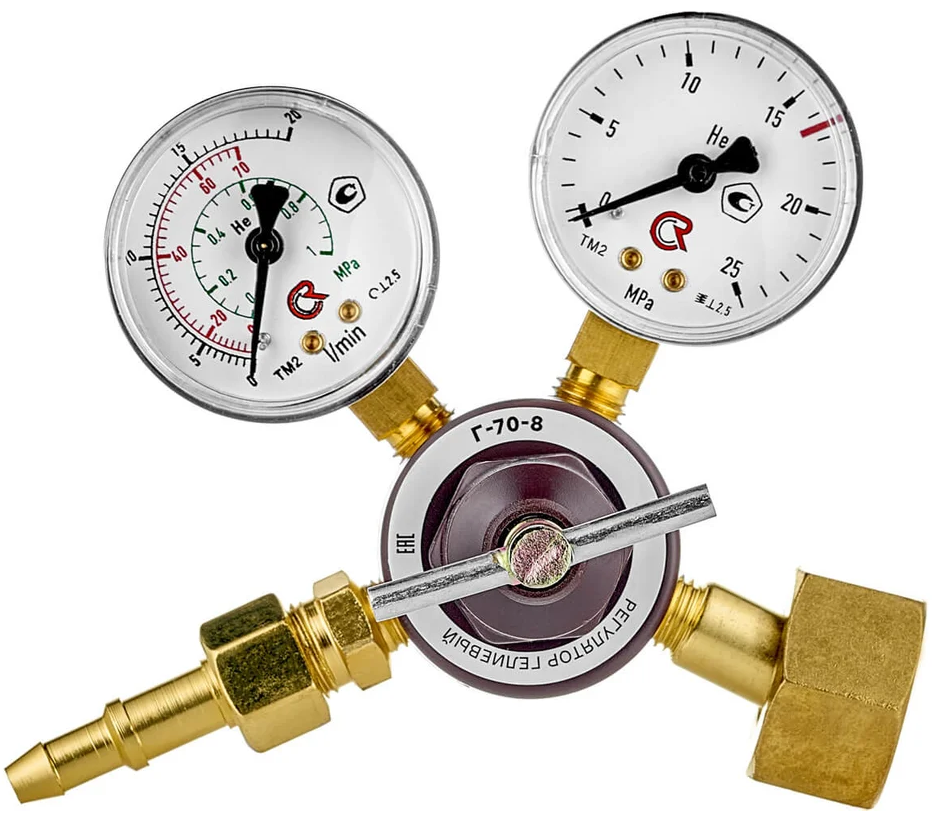

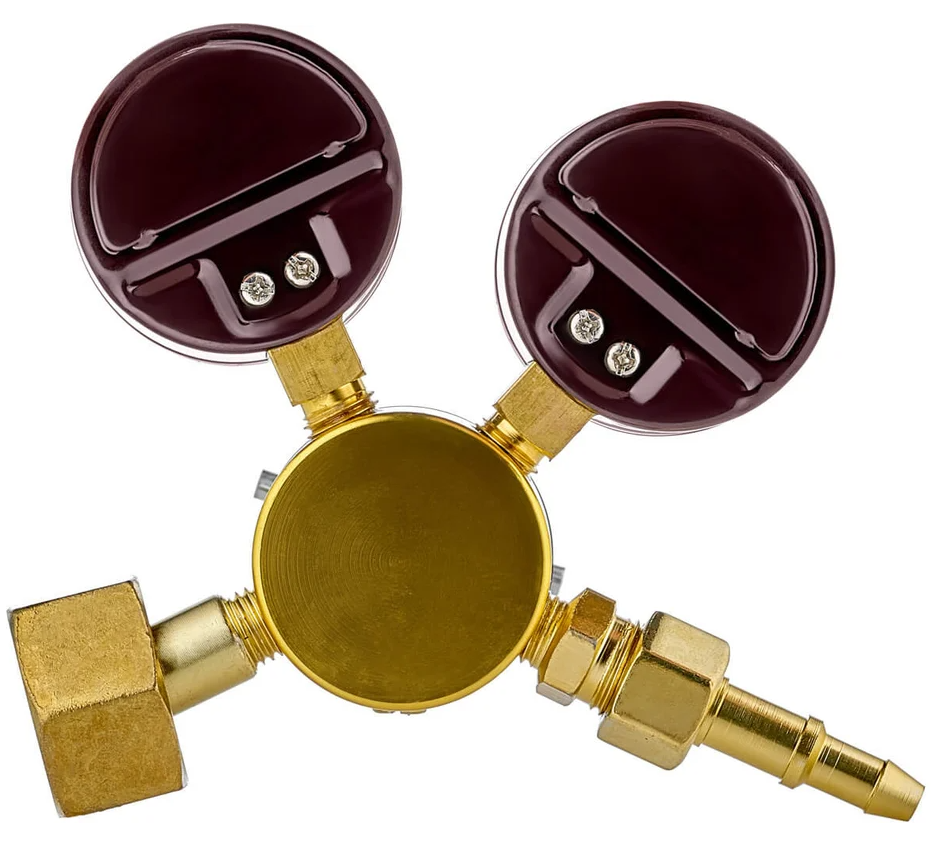

Helium regulator G-70-8 PTK Model

The body is made of aluminum, the gearbox cover is made of special plastic, which has high strength.
The reducer has a lightweight design, suitable for mobile gas welding posts.
It is equipped with a universal nipple, which allows you to use rubber sleeves with an inner diameter of 6 and 9 mm without additional adapters.
Attention, the image of the product may differ from the real one! The correct parameters are specified in the technical specifications of the product.





Category

Specification:

Technical characteristics of helium regulator PTK 00000029416
Gas Type: Helium
Max working pressure：3.5 MPa
Max throughput：4.2 m³/h
Input Connection:G3/4
Output connection：M16×1.5; 6.3 mm; 9 mm
Material: Aluminum
Number of pressure gauges: 1 pcs
Purpose：flow meters (with rotameter)
Input pressure: 200 bar
Gas heater: no
Net weight:0.42 kg
