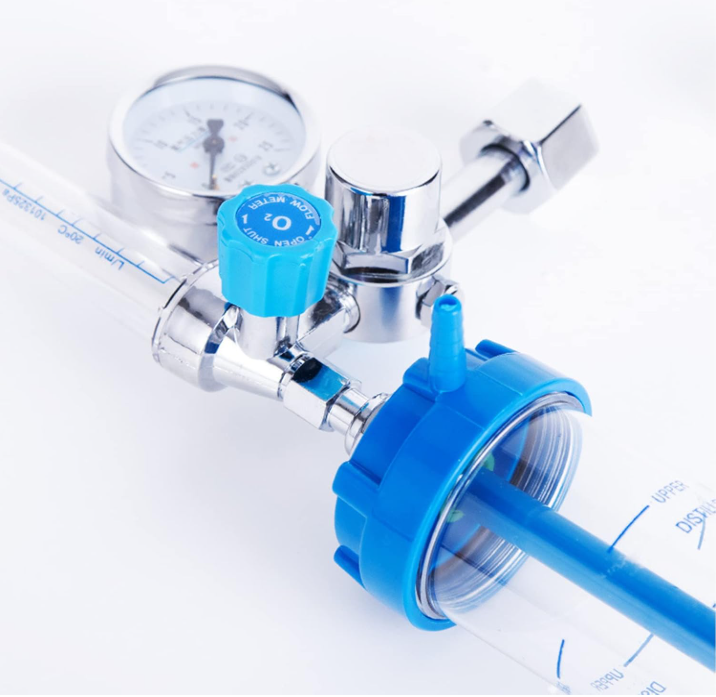

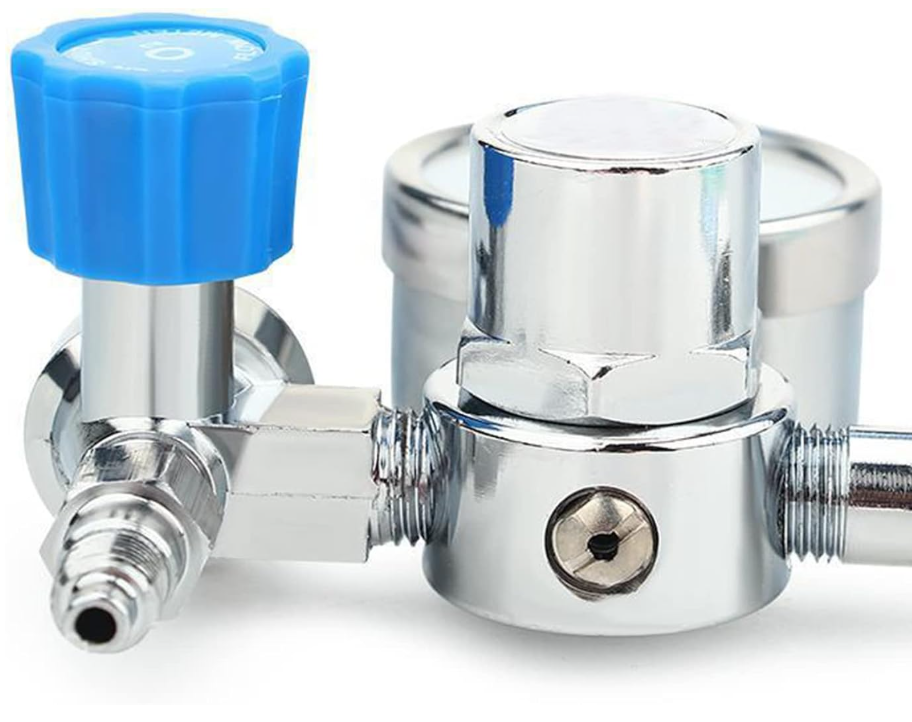

Buoy-type oxygen absorber flow meter pressure reducing valve regulator G5/8 BSPP

High quality: The pressure gauge is made of high-quality glass, with a thick anti drip design that is clear and highly sensitive. The pressure reducing valve is made of high-quality zinc steel, with high toughness and wear-resistant sealing for greater safety. The oxygen cylinder connection port is equipped with a gas filter Internet, which is safer for dual protection
Application: Oxygen flow meters are suitable for home, outdoor, high-altitude, and oxygen supply systems, providing oxygen inhalation

Category

Specification：

Material: Zinc steel
Brand: Terizger
External Decoration Zinc
Import Connector Size: 0.85 Inches
Imported connector type: BSPP
Export fitting type: BSPP
Port count 1
Export connector size: 0.85 Inches.



1.Instruction
Oxygen Inhalator is mainly used in the oxygen supply system
1、Mainly function:
1-1.Oxygen flow range:1~10L/Min 1~15L/Min
1-2.Pressure reducing range:2.0~3.0kg
1-3.Relief valve Pressure range:(3.5kg±0.5kg)
2、Appliance introduction:
2-1.Before using, please fill pour clear water into moisture bottle about one third reaching water line site.
2-2.DF-2 blind nut straw into bolt head, make the pipe of flow meter square water line.
2-3.Put off regulator(9),put on oxygen tube switch, so you will the data from needle position of pressure gauge(2).At last, straw flow on/off at anti clockwise according to need, adjust switch.
2-4.If you need oxygen for a long time,can use the pipe to help absorb oxygen.
2-5.Moisture bottle(20) circles at clockwise,adjust(17) oxygen hole to other site.





FAQ:

Installing：

Q1: What preparations need to be made before installing oxygen regulator?

Environmental inspection: Ensure that the operating environment is well ventilated, free of open flames, heat sources, and kept away from grease and flammable materials (“four oxygen protections”: oil, fire, heat, and earthquake prevention).

Personnel preparation: the operator needs to wash his hands to ensure that there is no oil stain, cosmetics or alcohol gel on his hands (to be completely volatilized).



Equipment inspection: Check whether the oxygen cylinder is within the valid inspection period (check the steel seal), and whether the cylinder body is severely corroded or damaged. Check whether the appearance of the pressure reducer is intact, free of oil stains, whether the pressure gauge pointer is reset to zero, and whether the threads of each interface are intact.

Check the components: prepare the pressure reducer, suitable sealing gasket (usually brass or PTFE gasket), and special wrench.



Q3: How to prepare the oxygen cylinder valve before installation?

Place the oxygen cylinder firmly upright to prevent tipping over.

Facing the bottle valve outlet, quickly open and close the valve for 1-2 seconds (“blowing dust” operation). The purpose is to use high-pressure oxygen to blow out dust or foreign objects that may exist at the valve port. It is strictly prohibited to aim at people or mechanical equipment during this operation process.



Q4: How to install an oxygen regulator correctly?

Connect the pressure reducer: Place a clean and complete specialized sealing gasket into the intake port groove of the pressure reducer. Align the inlet of the pressure reducer with the outlet of the bottle valve by hand, tighten it preliminarily, and ensure that it is aligned with the correct thread.

Manual pre tightening: Continue to rotate the nut by hand until significant resistance is felt, ensuring smooth thread engagement without tilting.

Tool tightening: Use a specialized fixed wrench (it is strictly prohibited to use a flexible wrench/adjustable wrench to avoid slipping or damaging the nut) to gently tighten. Avoid excessive force to prevent thread slippage. Usually, after tightening by hand, apply a slight force of about 30 degrees.

Check connection: After installation, check whether the pressure reducer and bottle valve are coaxial and stable.
