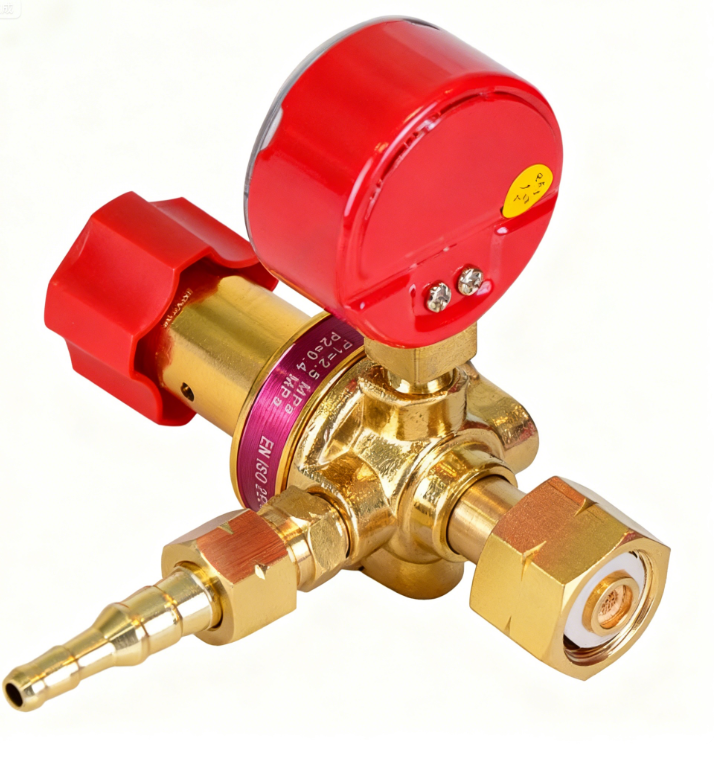

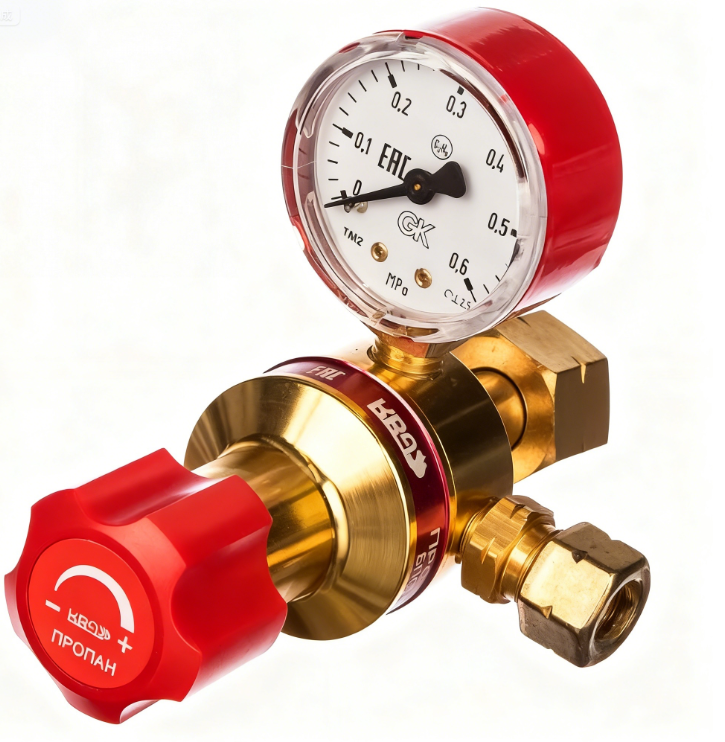

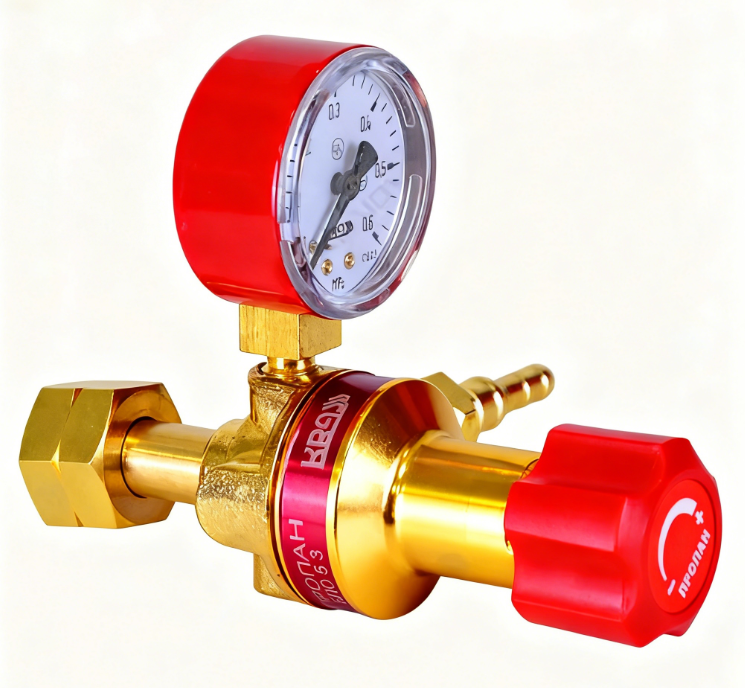

Propane Regulator BPO-5-3 GCE KRASS 2117500

Brand: OEM/ODM
Process gas: Propane
Maximum flow rate: 5 l/min (m ³/h)
Weight: 0.6 kilograms
Inlet pressure, 25MPa (250bar)
Input connection: Width 21.8×1/14 Length
Output connection: M16x1.5LH; 6.3 millimeters; 9 millimeters
Dimensions, 140 ° 140 ° 120mm
Body Material: Brass
Nipple diameter, 6/9 millimeters
Number of pressure gauges, 1
Export pressure: 4 bar
The propane reducer BPO-5-3 GCE KRASS 2117500 is designed to reduce and regulate the gas pressure from the steel cylinder, and automatically maintain the gas working pressure at the desired level.
The gearbox adopts an improved design, which allows you to set the working pressure more accurately. Advanced technology, combined with years of validated working principles, provides an excellent device that ensures uninterrupted and accurate operation.

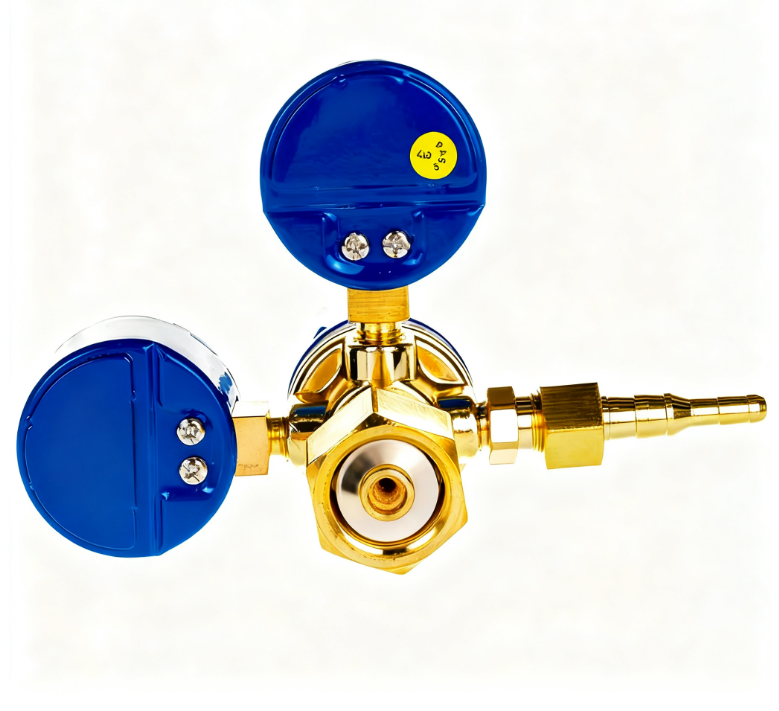

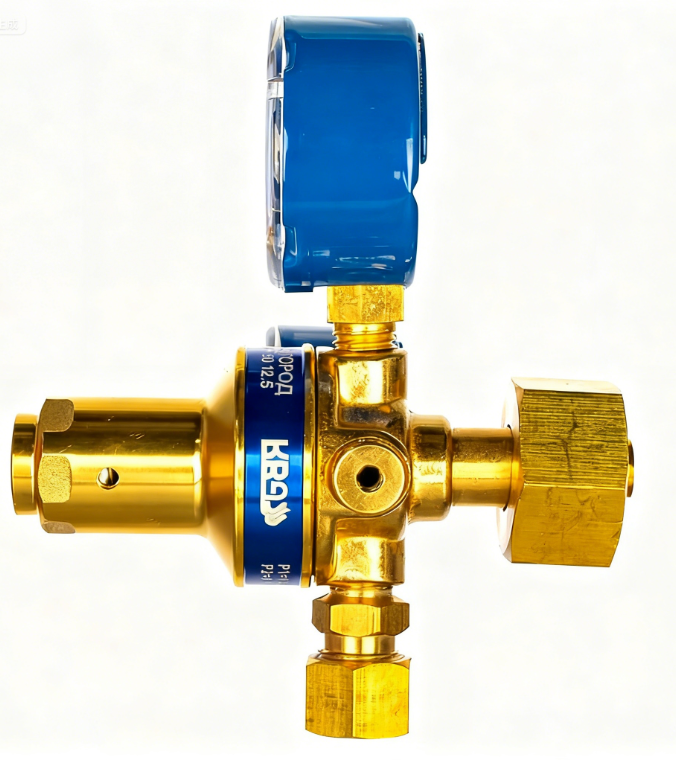

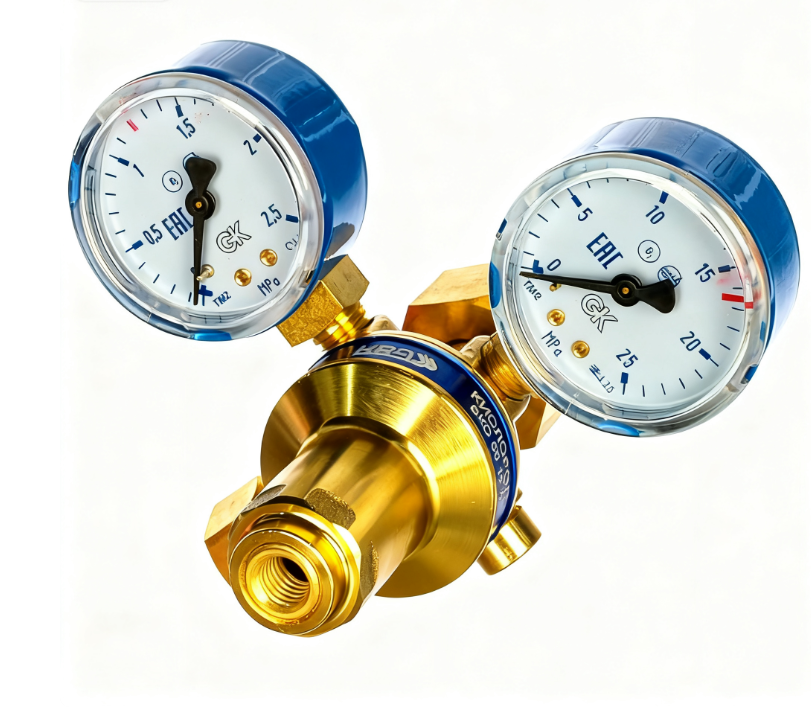

Oxygen reducer BKO 50 12.5 KRASS
For regulating gas pressure in bars
Control Scheme Single-stage
Gas：Oxygen
Maximum input pressure：15 MPa/150bar
Maximum throughput：50 m3/h
Input Connection： G3/4″ DIN9 (Sliding Nut)
Output connection： M16x1.5 (External thread) + nipple Ø 6.3/F9.0 mm
Pressure gauge size (diameter)： 50 mm
Shut-off valve ：No
Body Material ：Brass
Maximum working pressure： 1.25 MPa/12.5 bar
Metal Body Cover
Non-adjustable safety valve provides passive protection;
Convenient handle (flywheel, adjusting screw);
Color identification by type of gas, in accordance with the Russian standard;
Climatic performance allows to use the reducer in the temperature range from -25 ° C to +50 ° C;
Designed and manufactured in accordance with GOST 13861-89, ISO 2503-83, GOST 12.2.052-81.

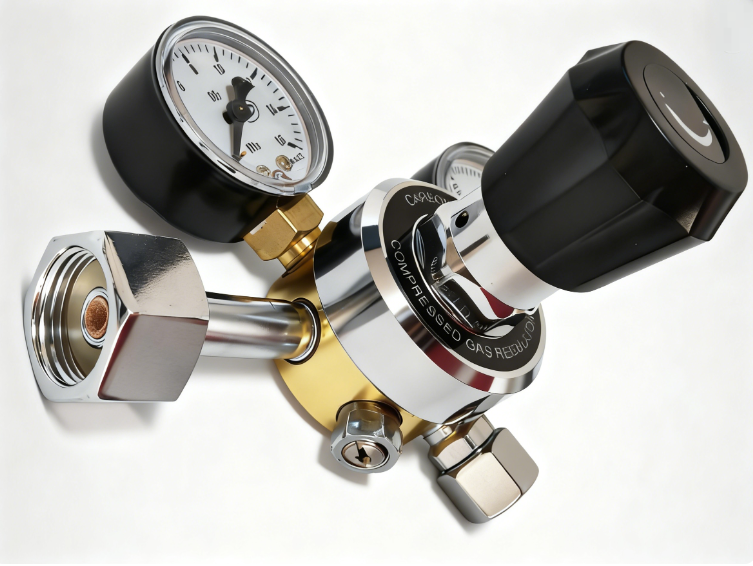

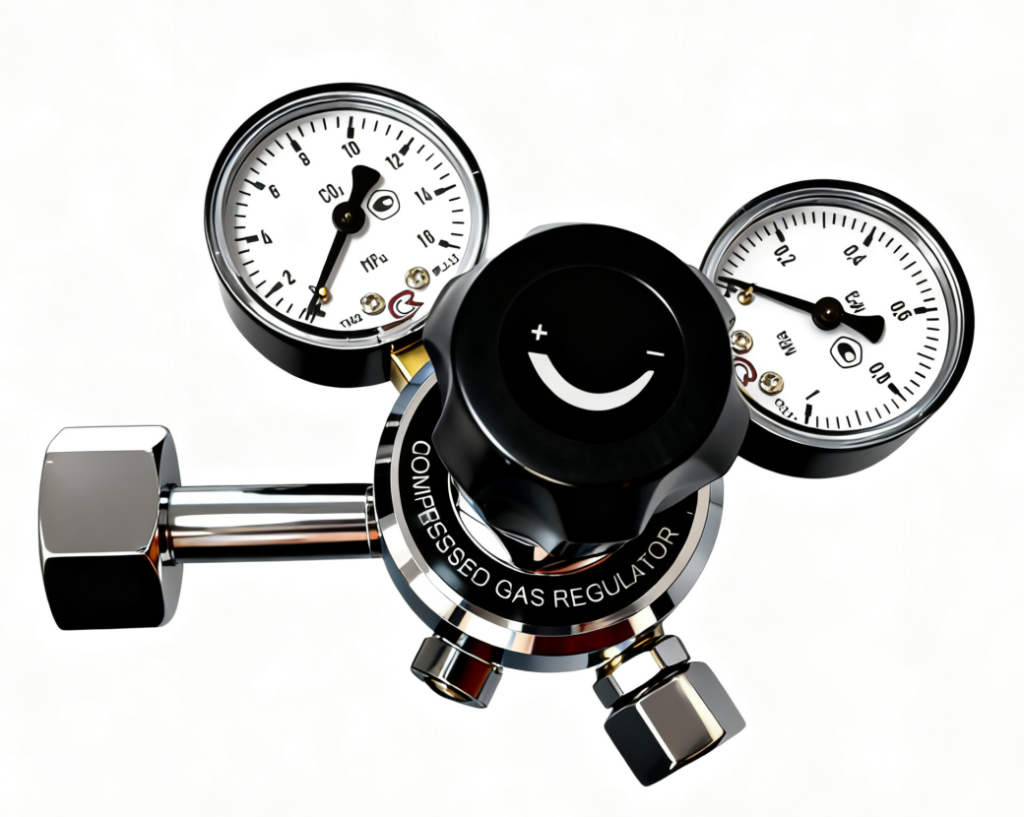

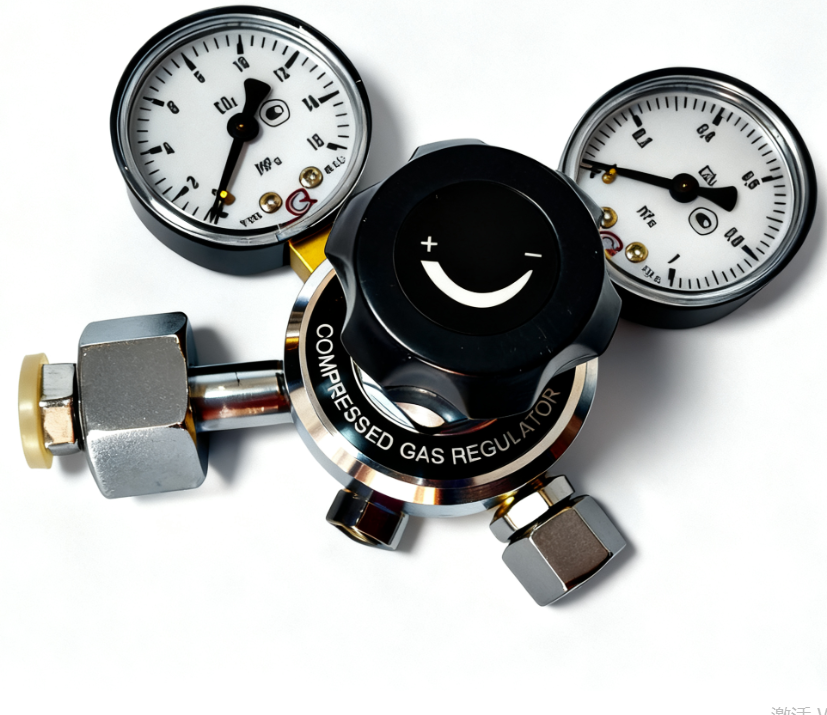

CO2 Carbon regulator UR-6, throughput 15 m³/h

The AtlasWeld UV-6 Carbon Reducer is a professional equipment designed for use with carbon-filled cylinders.
The product has a high throughput – up to 15 m3 / h, which allows it to be used for various welding tasks. The G3/4 input connector and the 6.3 mm – 9 mm output connector provide convenient connection to cylinders and welding equipment.
General characteristics
Brand: ATLASweld
Type:reducer
Gas Type: Carbon Dioxide
Installation location:”cylindrical
Number of Houses: 1
Features: Manometer
Number of pressure gauges:2
Maximum throughput: 15 m³/h
Body Material: Brass
Color: Black
Weight: 450 g
Length: 130 mm
Height: 110 mm
Width: 130 mm
Detailed equipment
Carbon Reducer AtlasWeld UR-6 – 1 pcs Passport – 1 pcs
